KEYENCE LV-21AP Amplifier Unit / Main Unit / PNP

Description

KEYENCE LV-21AP Amplifier Unit / Main Unit / PNP

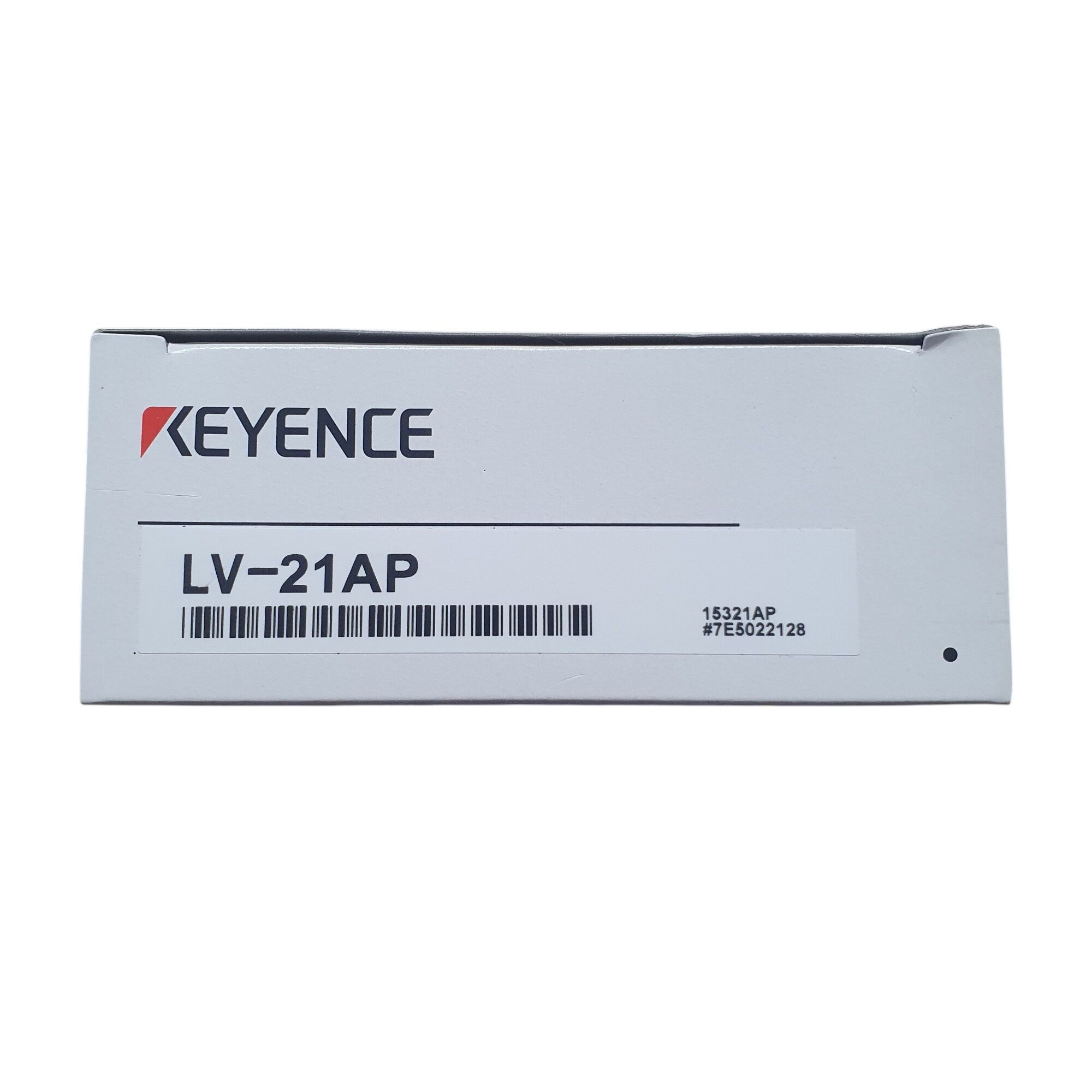

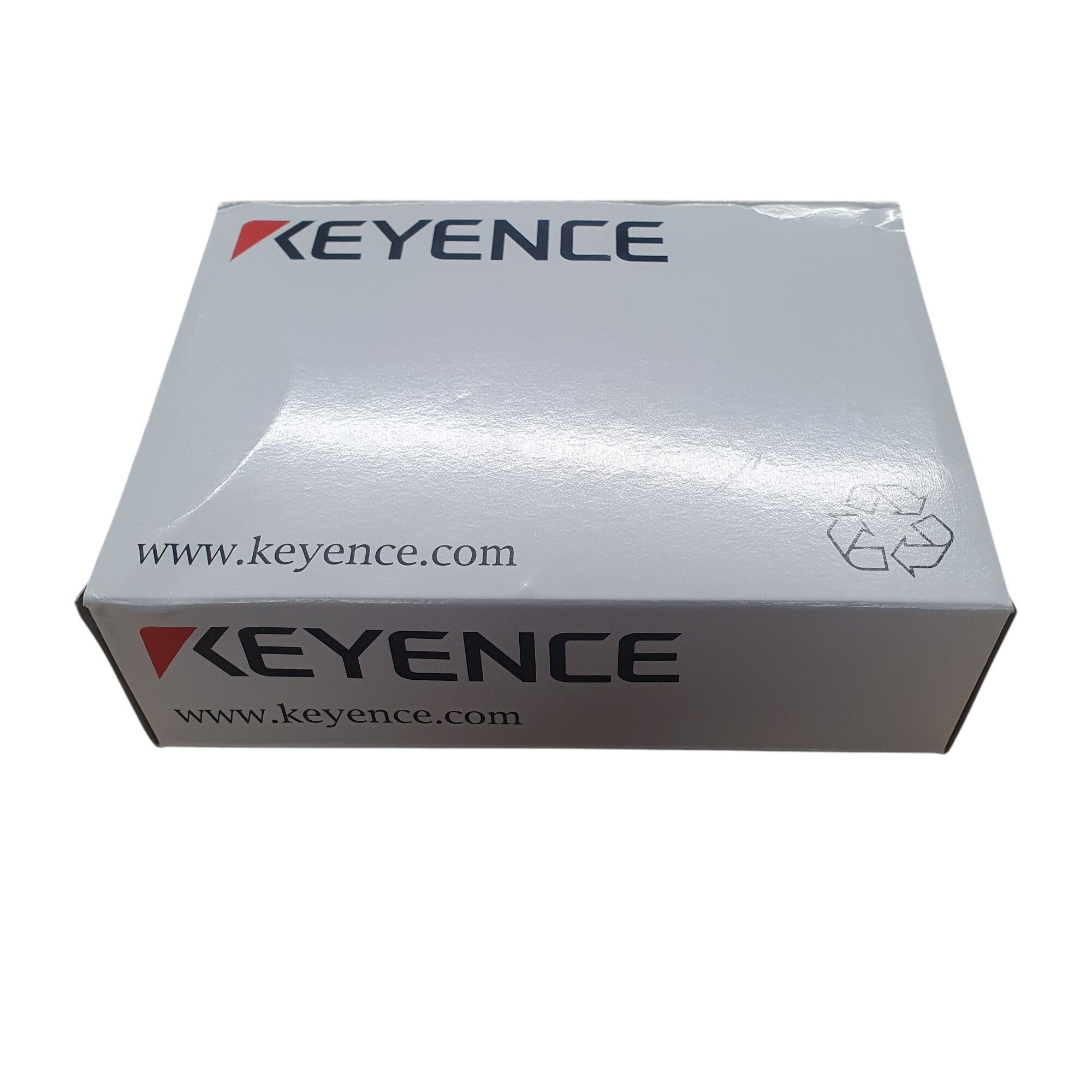

Includes 1x KEYENCE LV-21AP Amplifier Unit (Boxed)

• Brand: KEYENCE
• Model: LV-21AP
• Type: PNP Output
• Control Output: PNP Open Collector 2x Channels, 30 DVC Max, Max 10o mA, Residual Voltage (1.0 V Max)
• Response Speed: FINE: 80ps, TURBO: 500ps, SUPER TURBO: 4ms.
• Number of Interface Preventive Units: FINE: None, TURBO: 2 Units, SUPER TURBO: 4 Units.
• Protection Circuit: Reversed Polarity Protection, Over Current Protection, surge Absorber
• Unit Expansion: Up to 7 Additional Expansion Units can be Installed (8 Units including the Main Unit)
• Power Voltage: 12 to 24 VDC, Ripple (P-P) 10% or less
• Power Consumption: 1.5W Max. (125 mA Max. For 12V, 62.5 mA Max. for 24V)
• Ambient Temperature Resistance: -10 to +55℃
• Relative Humidity Resistance: 35 to 85% RH (No Condensation)
• Material: Polycarbonate
• Weight: 120g

*Main listing image does not represent part number

*Other sizes and types available, please enquire for more details.
