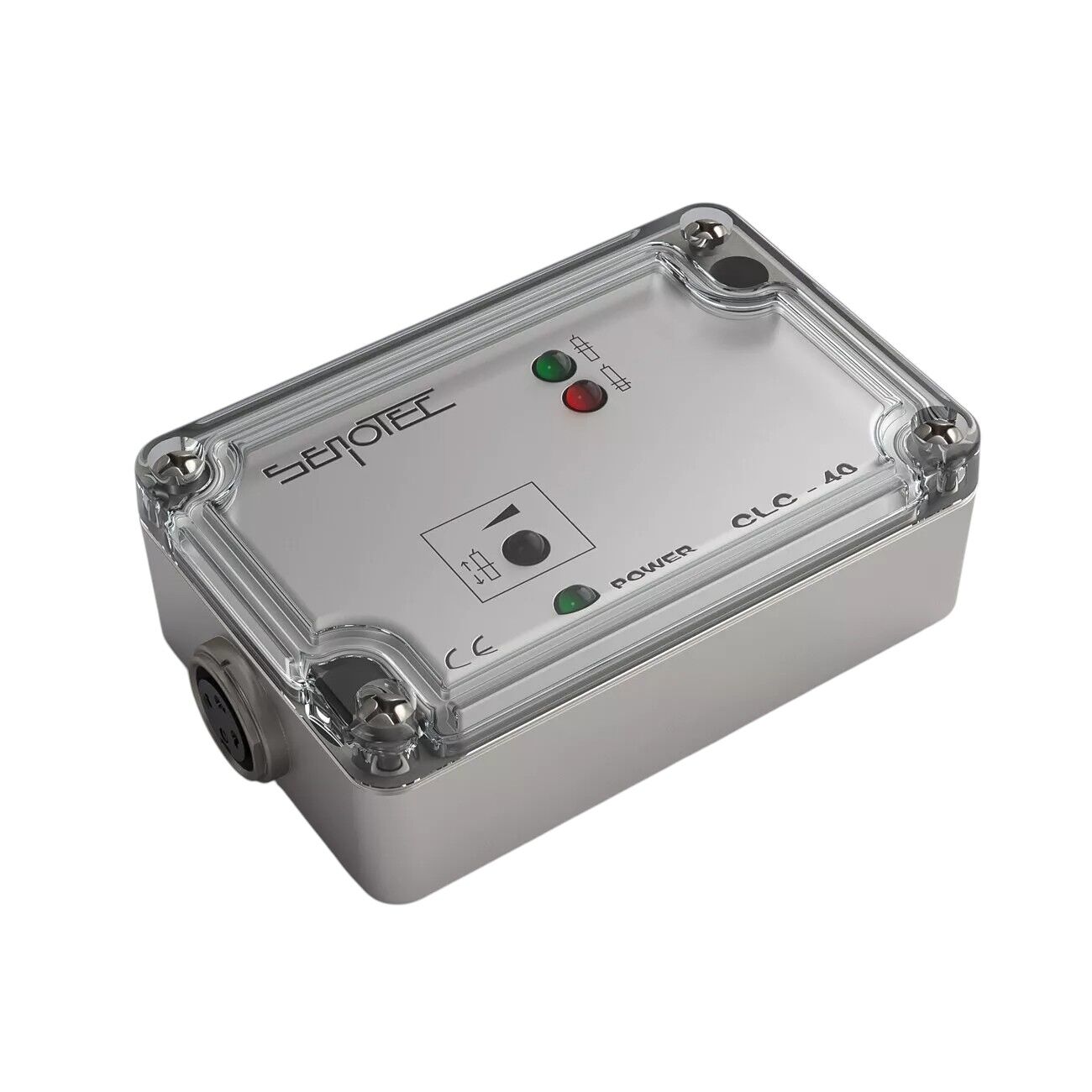

Senotec CLC40-SM8 2004008 Switching Amplifier
£439.60 ex vat £527.52 inc. vat
Order in
2:15:44 for same day shipping.
Senotec CLC40-SM8 2004008 Switching Amplifier
Part.-No: 20 040 08
Type: CLC40-SM8

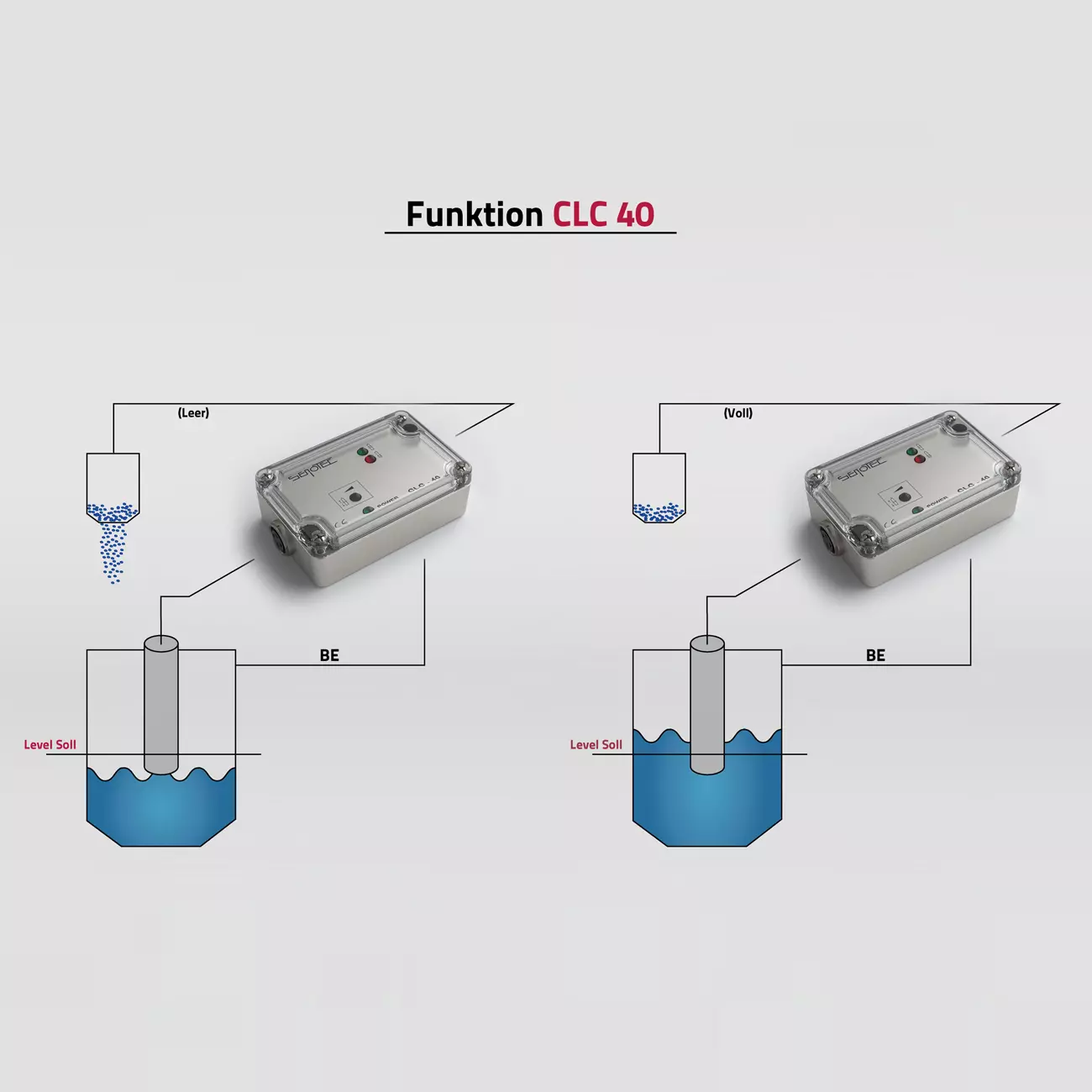

Function: Switching amplifier with one switching point for level sensors series R
Other sizes and types available, please enquire for more details.
2 in stock
Description
Senotec CLC40-SM8 2004008 Switching Amplifier
- Supply Voltage: 18 .. 30V/DC
- No-load current: Typ. 50 mA
- Protective circuit: Built-in
- Housing Material: G AL SI 12, Cover clear plastic
- Permitted ambient temperature: -10 … 60°C
- Degree of protection IEC60529: IP 66 Housing, IP 40 Female socket
- Output function: non-potential, relay contact – NO, Normal Open, 1A/150V
- LED-display: GREEN – Relay open, RED – Relay closed
- Connection: Male socket 3-contacts, Binder series 768, Locking screw M18x1
Includes 1 x CLC40-SM8 (BOXED W/ DATA SHEET)
Part.-No: 20 040 08
Type: CLC40-SM8
Function: Switching amplifier with one switching point for level sensors series R
