Description

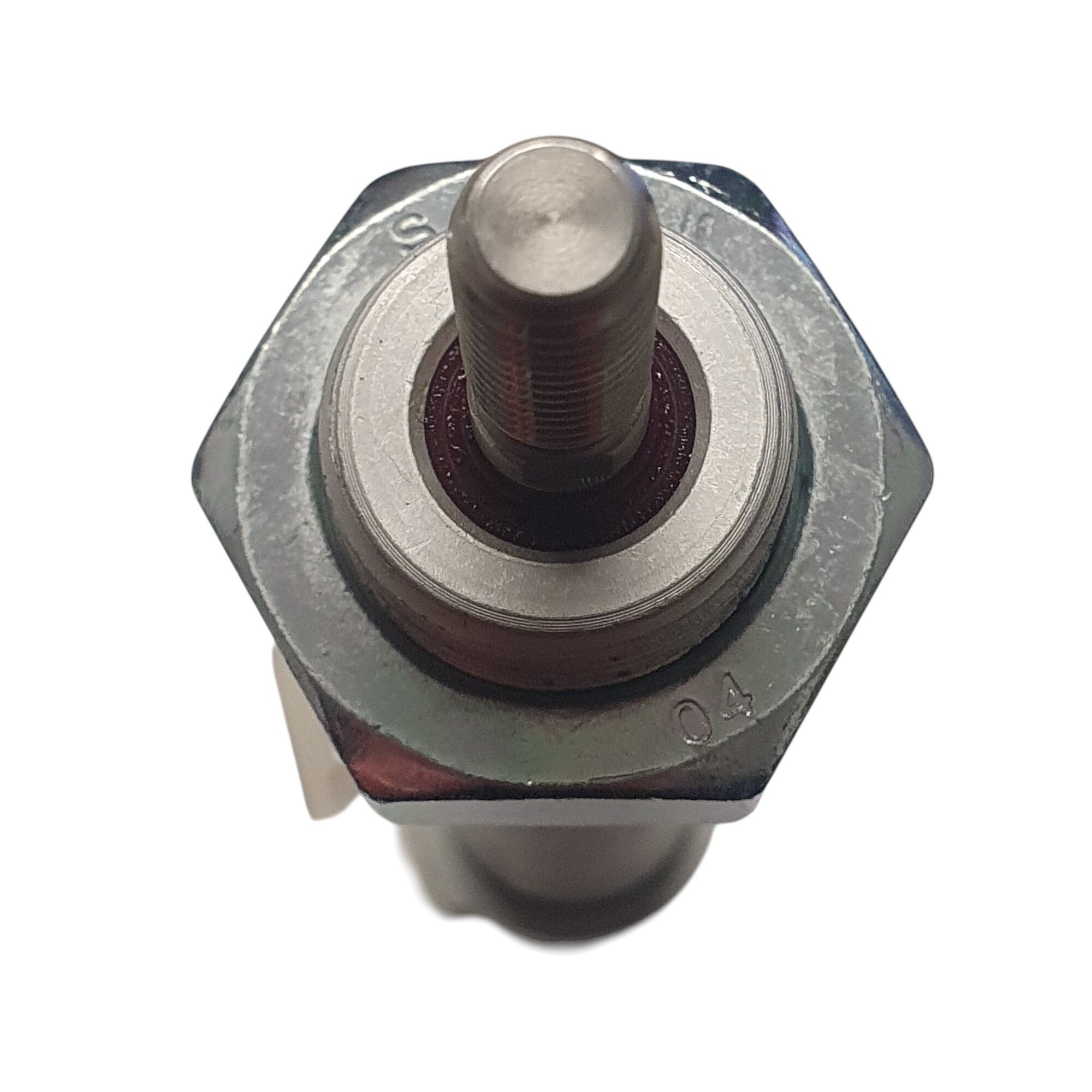

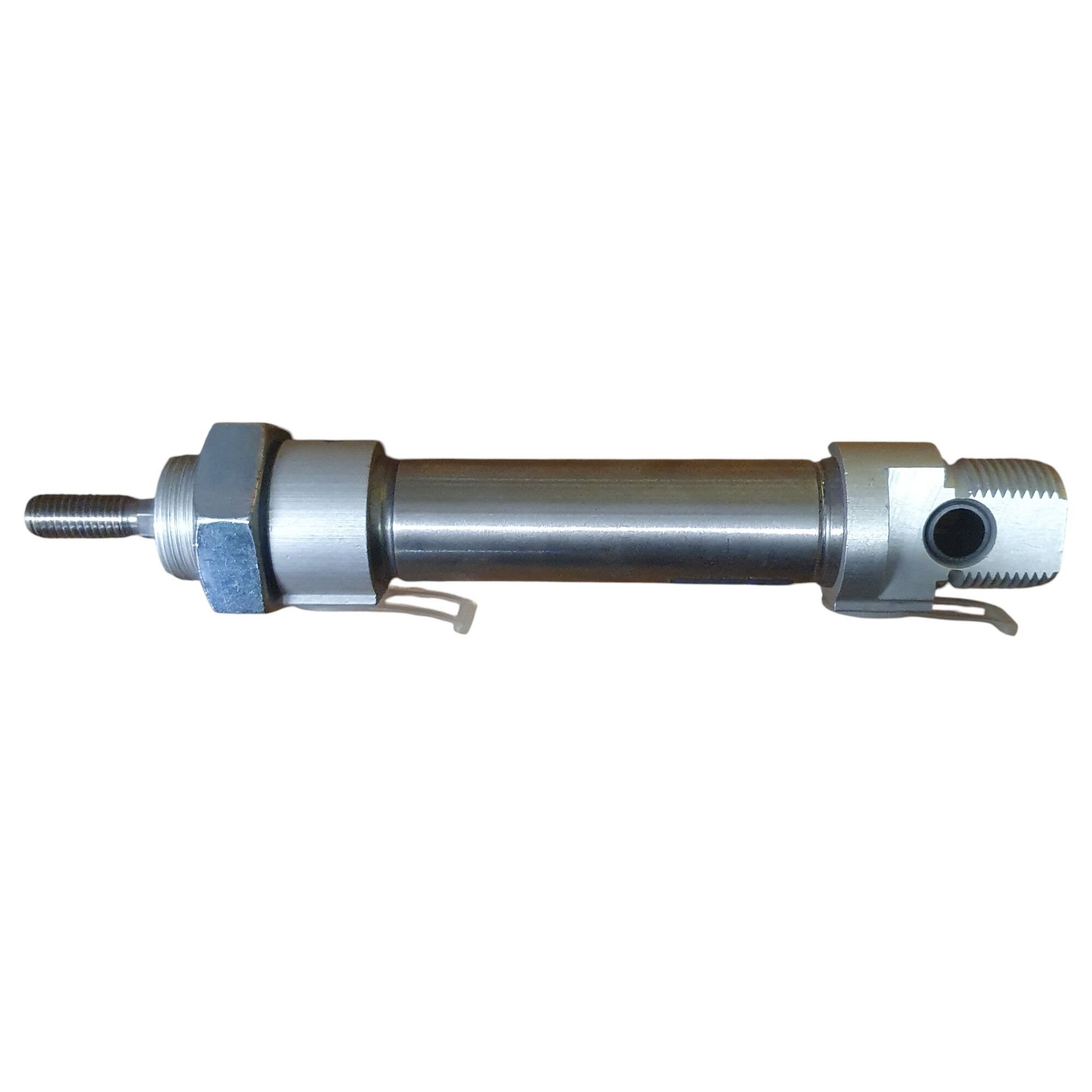

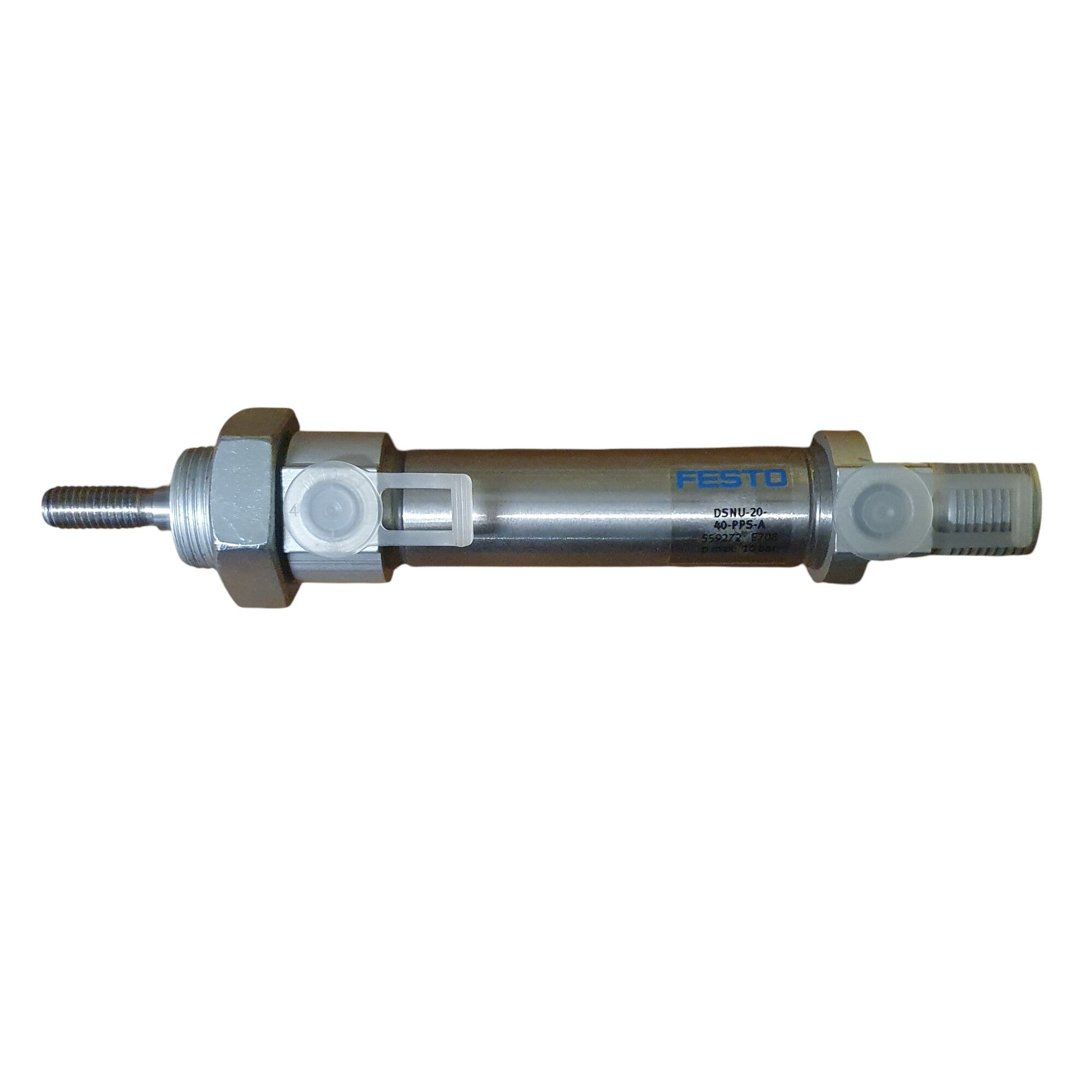

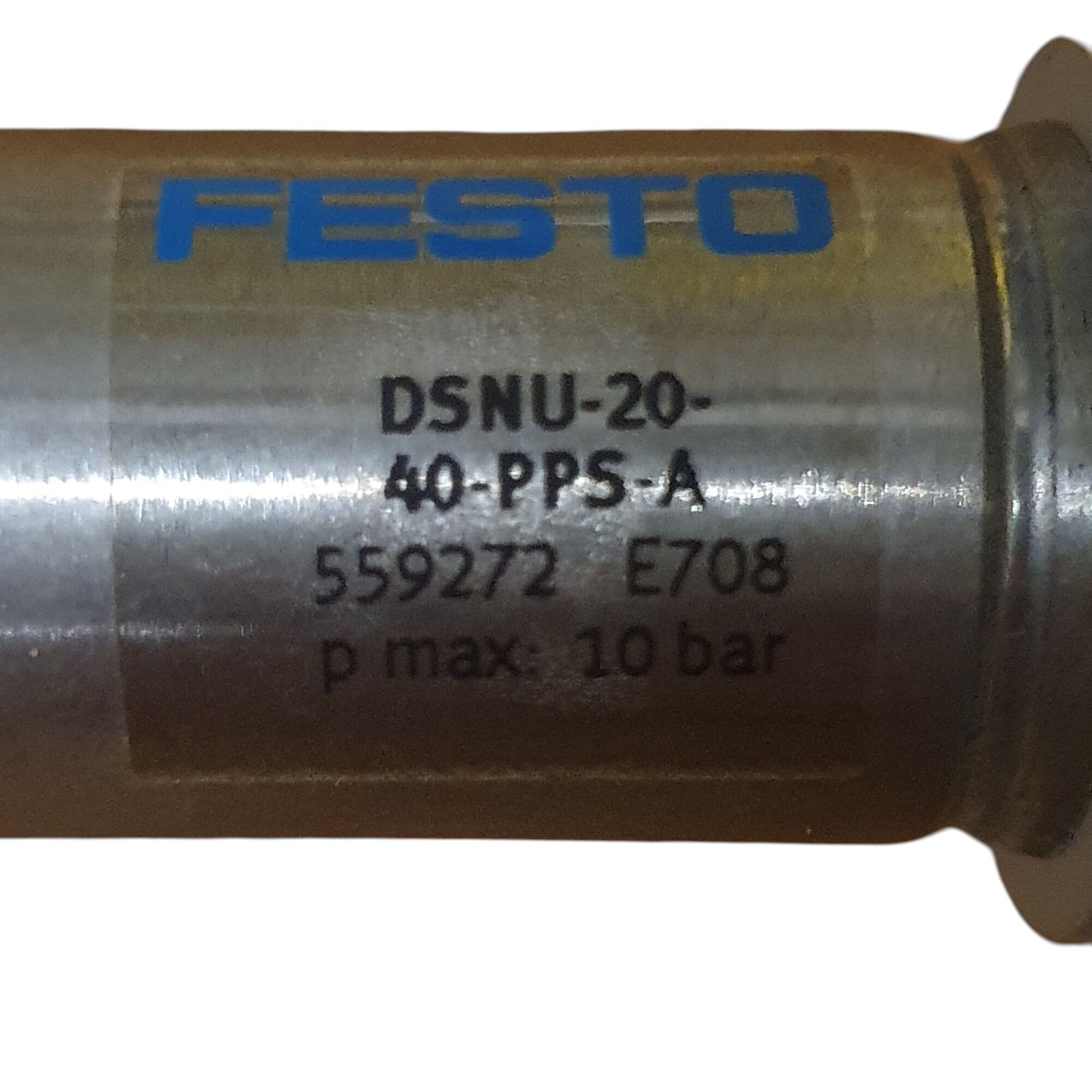

Festo Pneumatic Cylinder – 559272 – DSNU-20-40-PPS-A
Includes 1x -Festo Pneumatic Cylinder – 559272 – DSNU-20-40-PPS-A (Unboxed)
Festo DSNU series round pneumatic cylinders are equipped with self-adjusting pneumatic cushioning at both ends of the barrel. They feature a stainless steel piston rod and a three-component design that ensures smooth operation and a long service life. These double-acting pneumatic actuators use dual air connection ports to control the extension and retraction of the piston rod in linear motion. A wide range of accessories allows DSNU cylinders to be mounted in almost any installation position.
DSNU PPS self-adjusting cushioning pneumatic cylinders deliver optimal cushioning performance without the need for manual adjustment. The automatic cushioning ensures smooth, controlled deceleration at the end positions, providing gentle yet dynamic motion even under varying loads and speeds.

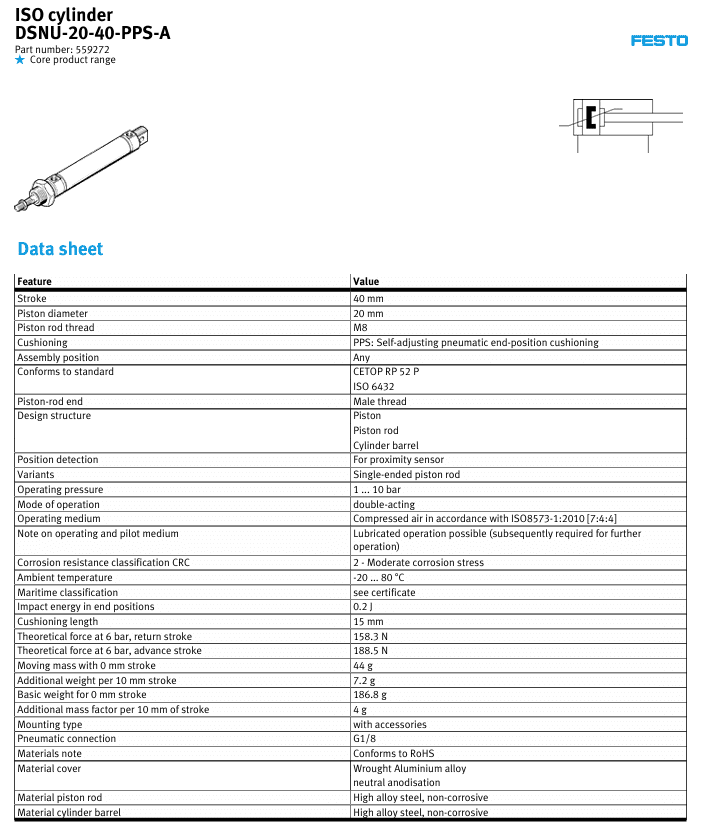

- Brand: Festo
- Series: DSNU
- Product Type: Pneumatic Cylinder
- Mfr. Part Number: DSNU-20-40-PPS-A
- Mount Type: Front, Flange, Foot, Swivel, Rear, Direct
- Cushioning Type: Air Cushion
- Length: 172mm
- Stroke: 40mm
- Piston Diameter: 20mm
- Piston Rod Thread: m8
- Standards: ISO 6432, CE marking to EU Explosion Protection Directive (ATEX), ATEX II 2GD, Germanischer Lloyd
*Main listing image does not represent part number
