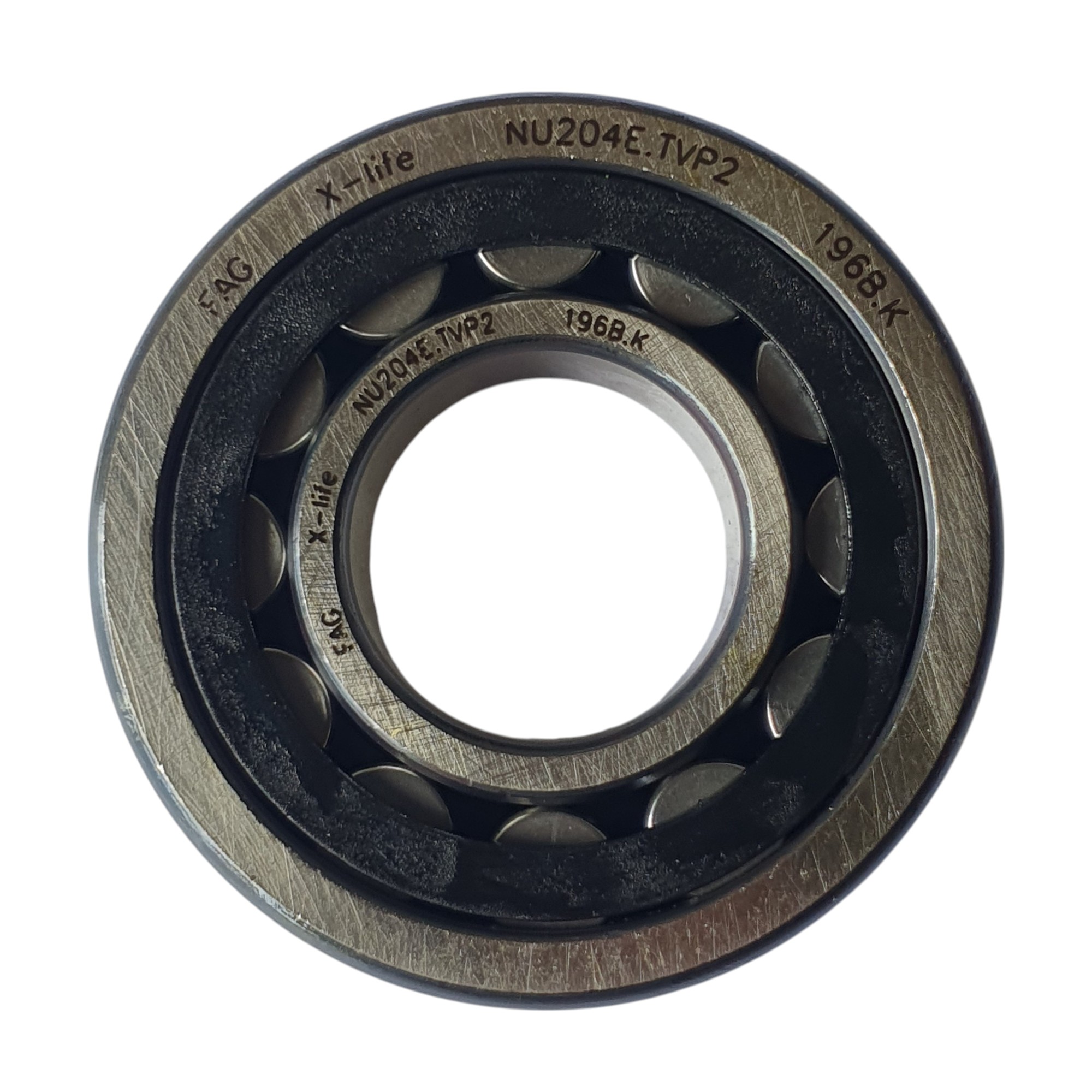

*SALE* FAG NU204E TVP2 Cylindrical Roller Bearing

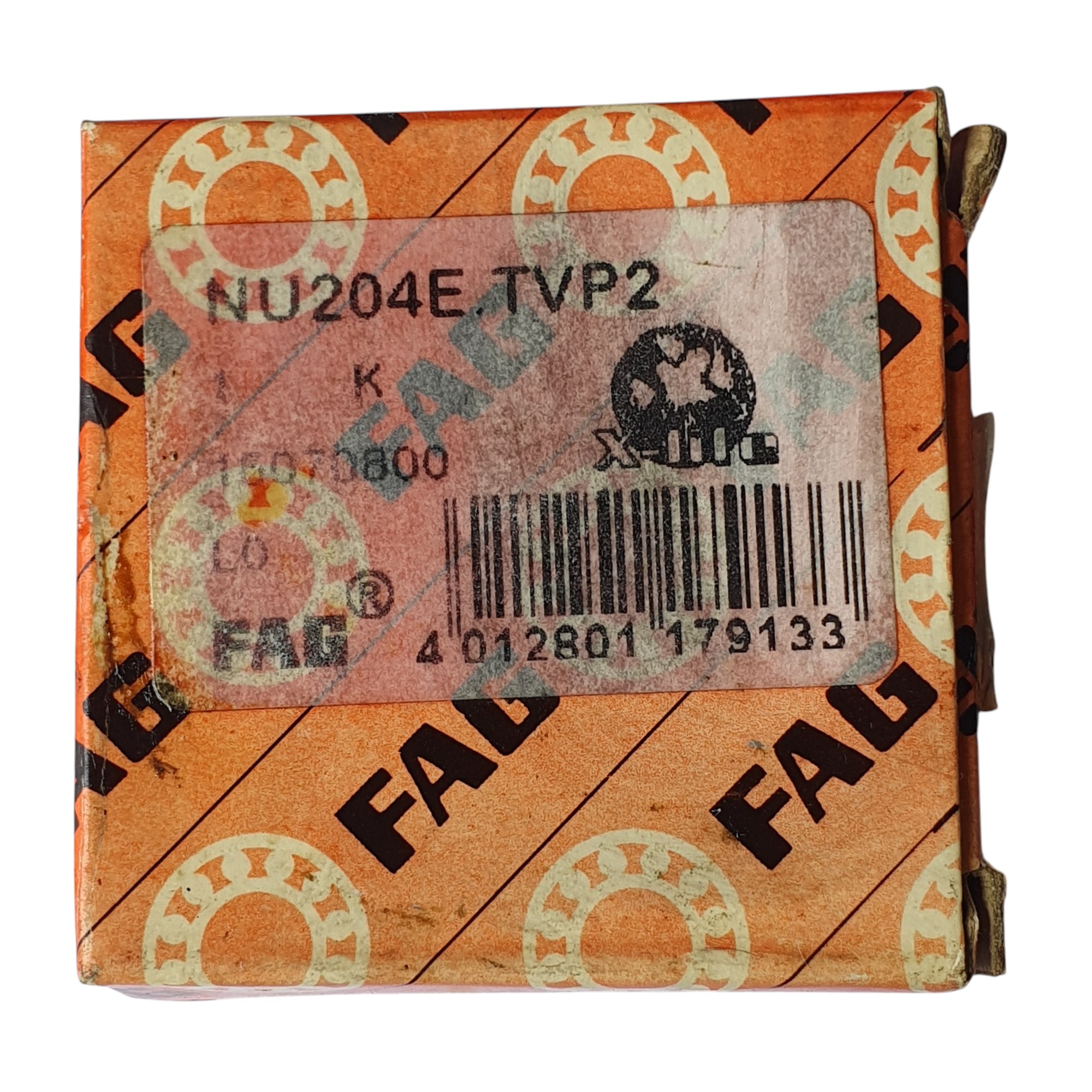

Includes 1 x FAG NU204E TVP2 (Boxed)
A Cylindrical Roller Bearing is a type of rolling-element bearing that uses cylindrical-shaped rollers to maintain the separation between moving parts of the bearing. Unlike ball bearings, they provide line contact instead of point contact, giving them higher load capacity.
Rolling Element Cylindrical rollers (not balls)
Load Capability Very high radial load capacity
Axial Load Limited (depends on bearing type/design)
Speed Capability Moderate to high (depending on design and cage type)
Alignment Tolerance Low; misalignment can reduce performance or cause failure
Precision High dimensional accuracy; often used in machine tools and gearboxes
Type: Single-row cylindrical roller bearing with NU design
Dimensions: 20 mm bore × 47 mm outer diameter × 14 mm width
Cage: Polyamide PA66 (TVP2) – glass-fibre reinforced, roller-guided
Internal clearance: Normal (CN)
Design: Flangeless inner ring, double-flanged outer ring – suitable for axial displacement of the shaft in both directions
Load capacity: Increased capacity design (E)
Temperature range: Up to 120 °C
*Main listing image does not represent part numberÂ
